Utility & Design Patent Drawings
Prepared to Patent Office Standards for Attorneys, Firms & Individual Inventors
USPTO | EPO | PCT compliant formatting | Confidential by default | NDA executed upon request

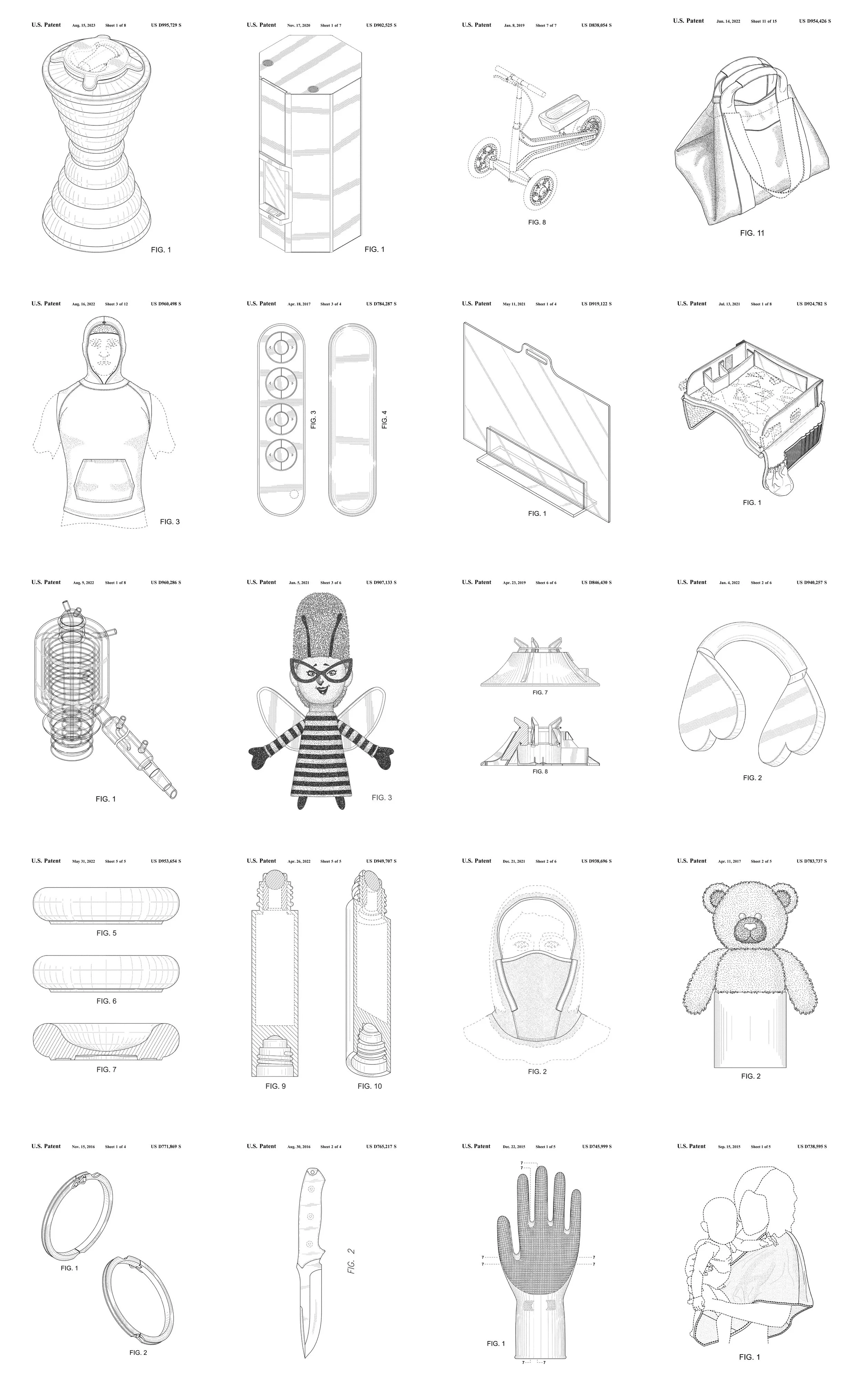

See Selected Published Drawings Below
Built for Filing from the Start
Clear, structured drawing sets aligned with the specification and claims.
Consistent line weights, organized reference numerals, and patent-office ready formatting.
Consistent, examiner-ready line work
Proper margins and minimum text sizing
Structured and coherent figure sets
Clear coordination with specification and claims
Surface shading applied to accurately define form (design patents)
Select non-patent technical illustration work is also available. Follow Here
Technical Fluency Across Disciplines
Mechanical Assemblies
Consumer Products
Structural Components
Medical Devices
Electrical Systems
Process & System Diagrams
Experience supporting patent filings across a wide range of subject matter, including mechanical assemblies, consumer products, medical devices, structural systems, and electrical technologies.
A great reference for design drawing reproduction guidelines for US and WIPO applications can be Found Here
Drawing Process
How the Process Works
1. Reference Review
Sketches, CAD files, photos, or prior figures are reviewed. A project quote is provided.
2. Draft Preparation & Review
Draft figures are prepared and returned for review. Revisions and reference numerals are finalized.
3. Final Delivery
Complete filing-ready drawing sets delivered as organized PDF figures ready for submission.
Design Patent Process Examples
Client Reference Materials
3D CAD file or 3D Scan
Draft Figure Preparation
Visible contours and surface transitions are refined to establish proper line hierarchy
Final Filing-Ready Drawings
Final figures are prepared to meet design patent drawing requirements, with consistent views, line weights, and compliant surface shading to accurately convey form
Utility Patent Process Examples
Client Reference Materials
2D Scan image with client comments
Draft Figure Preparation
Figures are reproduced with clean vector line work and returned for client review and markup.
Final Filing-Ready Drawings
Final figures prepared to meet utility patent drawing requirements, with compliant formatting, reference numerals, and line work to support the written specification.
Typical turnaround: 1–2 weeks depending on complexity. Rush timelines available when needed.
Why Clients Continue to Work With Me
Reliable Turnaround
Clear timelines and responsive communication.Technical Interpretation
Complex structures translated into precise drawings.
Multi-Figure Consistency
Reference numerals and views coordinated across sets.Patent Office Formatting
Prepared to meet specific patent office requirements.
Request a Drawing Quote
Is this request for a design or utility application? Inform me on the type of reference material you have available… sketches, CAD files, photos, or prior figures.
Common formats include:
2D: PDF, AI, DWG
3D: STEP, IGS, STL, OBJ
All submissions handled confidentially.
NDA available upon request.
USPTO | EPO | PCT compliant drawings
15+ years experience
Used by patent attorneys & firms
Confidential submissions
